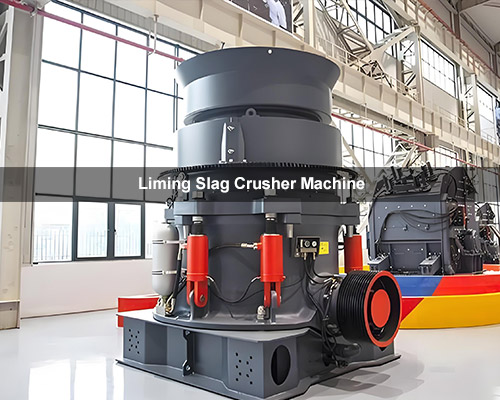

Liming Slag Crusher Machine for Steel Plant Waste
January 26, 2026
Summary：This technical article explores how Liming Heavy Industry's hydraulic cone crusher solve the specific challenges of steel slag recycling, focusing on tramp iron release and abrasion resistance.
In the modern metallurgical industry, steel slag is no longer viewed merely as waste—it is a misplaced resource. However, processing steel slag presents unique challenges that standard aggregate crusher simply cannot handle. For steel plants and recycling contractors, the Liming slag crusher machine for steel plant waste represents the bridge between costly disposal and a profitable secondary revenue stream.
Whether you are looking to produce road base materials, construction aggregate, or raw material for cement, choosing the right crushing equipment is critical to handling the extreme hardness and metallic content inherent in steel slag.
The Challenge: Why Steel Slag Destroys Ordinary Crusher
Steel slag is notoriously difficult to process. Unlike limestone or granite, slag possesses physical characteristics that lead to rapid equipment failure if the wrong machinery is utilized. The three primary pain points include:
- Extreme Abrasiveness: Slag wears down jaw plates and mantles significantly faster than natural rock, driving up OPEX (Operating Expenses).
- Tramp Iron Presence: Slag often contains “buttons” or chunks of metallic iron. In a standard crusher, these uncrushable objects can snap the main shaft or crack the machine casing.
- High Hardness: The crushing force required to break slag is significantly higher than standard aggregates, requiring a machine with a massive crushing ratio and power reserve.
The Solution: Liming’s Hydraulic Cone Crusher Series
To combat the risks of tramp iron and high abrasion, Liming Heavy Industry recommends the HPT Multi-Cylinder Hydraulic Cone Crusher or the HST Single Cylinder Hydraulic Cone Crusher as the core of the slag processing line.
1. The Process Flow
A typical Liming steel slag recycling line is engineered for safety and efficiency:
- Primary Crushing: A PEW European Jaw Crusher reduces large slag lumps. It is equipped with heavy-duty toggle plates to handle shock loads.
- Magnetic Separation (Stage 1): A magnetic separator removes large chunks of iron before secondary crushing to protect downstream equipment.
- Secondary Crushing: The HPT Hydraulic Cone Crusher performs the fine crushing. Its “lamination crushing” principle creates a uniform particle shape.
- Magnetic Separation (Stage 2): A secondary magnet removes fine iron particles liberated during crushing.
- Screening: A vibrating screen separates the final saleable aggregate sizes (e.g., 0-5mm, 5-10mm, 10-20mm).
2. Why Choose the HPT Hydraulic Cone Crusher?
The HPT Series is the preferred Liming slag crusher machine for steel plant waste because of its intelligent hydraulic protection system. When an uncrushable piece of iron enters the chamber, the hydraulic cylinders automatically lower the moving cone to release the iron and then reset immediately. This prevents the catastrophic shutdowns common with spring cone crusher.
Technical Specifications: HPT Series for Slag Processing
Below is a comparison of the key specifications for the HPT series, optimized for hard metallurgical slag.
| Model | Cavity Type | Max Feed Size (mm) | Capacity (t/h) | Power (kW) |
|---|---|---|---|---|
| HPT300 | Fine / Medium | 150 – 230 | 120 – 440 | 250 |
| HPT400 | Fine / Medium | 190 – 300 | 190 – 600 | 315 |
| HPT500 | Fine / Medium | 215 – 330 | 260 – 790 | 400 |
| HST250 (Single Cyl) | S2 (Standard) | 190 | 130 – 340 | 185 |
*Note: Capacity varies based on the specific density and hardness of the slag.
Liming Engineer’s Tip
“When designing a layout for steel slag, never skip the magnetic separation steps. We recommend a multi-stage magnetic separation process. Recovering the metallic iron not only protects your cone crusher from damage but provides a direct revenue stream, as the recovered scrap iron can be melted down again by the steel plant. The HPT Cone Crusher is designed to handle the occasional slip-through, but efficient magnetic separation maximizes the lifespan of your wear parts.”
Project Spotlight: Slag Recycling in Southeast Asia
A major steel mill in Southeast Asia utilized a complete Liming slag crusher machine setup to process 200 tons per hour of converter steel slag. Previously, they paid to have the waste hauled away.
The Results:
- Iron Recovery: Recovered approximately 4% metallic iron content, creating a new revenue channel.
- Aggregate Sales: Produced high-quality 10-20mm aggregate sold for road paving and asphalt mixing.
- Durability: The HPT300 Cone Crusher liners lasted 25% longer than the competitor’s spring cone crusher due to the specialized high-manganese steel alloy casting.
Frequently Asked Questions
How much does a Liming slag crusher plant cost?
The cost depends heavily on the capacity (TPH) and the configuration (fixed vs. mobile). A basic crushing unit starts at a lower threshold, while a complete plant with magnetic separation and screening systems for 200TPH will be higher. Contact us for a precise quote based on your tonnage.
Can the HPT cone crusher handle tramp iron in slag?
Yes. The HPT series features a hydraulic protection system that automatically releases tramp iron (uncrushable metal) from the crushing chamber without stopping the machine, significantly reducing downtime compared to spring crusher.
What is the best use for crushed steel slag?
Once processed by a Liming crusher, steel slag is excellent for road base material, asphalt aggregate, railway ballast, and as a raw material additive for cement production due to its high strength and chemical stability.
How often do liners need to be changed when crushing slag?
Because slag is abrasive, wear is faster than with natural stone. However, Liming uses specialized high-manganese steel alloys for slag applications, typically extending liner life by 15-20% compared to standard parts.
Steel slag recycling is a high-value opportunity that requires specialized, heavy-duty machinery. The Liming slag crusher machine for steel plant waste, particularly the HPT Hydraulic Cone Crusher, offers the robust construction and intelligent hydraulic systems necessary to handle the hardness and iron content of slag efficiently. By choosing Liming, you are investing in higher uptime, superior product shape, and a partner with decades of experience in industrial waste management.
