River pebble jaw and vsi crusher production line

Deconstructing Geometric Bottlenecks in River pebble jaw and vsi crusher production line Architecture

Attempting to assemble a 2-stage aggregate circuit using only a primary jaw and a tertiary VSI is an exercise in profound geometric ignorance. The laws of mass balance do not tolerate missing links. A C6X primary jaw discharging 150mm river pebbles directly into a vertical shaft impactor designed for a 40mm maximum feed will physically bridge the rotor, triggering a violent motor stall. To architect a functional extraction node for 200MPa silica pebbles, the gradation gap must be bridged by a secondary HPT cone crusher, enforcing a strict 3-stage hierarchy that culminates in rock-on-rock kinetic shaping.

The Gradation Gap and Rotor Paralysis

You cannot force a 150mm boulder into a 40mm aperture without catastrophic consequences.

I constantly audit flowcharts drawn by operators trying to minimize their initial equipment procurement. They place a jaw crusher next to a VSI and turn on the belts. The result is a guaranteed mass balance deficit. A C6X primary jaw crusher processing river pebbles typically discharges aggregate at 100-150mm. This is gross extraction.

Feeding this directly into a VSI6X1040 physically bridges the rotor.

The VSI is a high-speed precision instrument, not a primary wedge. When oversized pebbles enter the central feed tube, they wedge between the distributor plate and the rotor ports. The kinetic mass locks solid. The dual 200kW motors fight the jam until the thermal breakers trip, violently halting the entire line. The gradation gap between the jaw and the VSI is the most critical hazard in plant design.

The Mandatory Secondary Buffer: HPT Integration

To bridge this geometric void, the architecture must mandate an intermediate secondary crusher. However, because river pebbles contain up to 85% silica, utilizing a secondary impact crusher will vaporize the blow bars in 48 hours. The only mathematically viable solution is a multi-cylinder hydraulic cone crusher.

The HPT cone acts as the critical kinetic buffer.

It accepts the 150mm discharge from the primary jaw and compresses it down to a strict 0-30mm profile via continuous annular lamination. This secondary reduction stage safely neutralizes the oversized boulders, preparing a perfectly calibrated feed size that the VSI rotor can ingest without risking a mechanical stall. Eliminating the cone from the flowchart destroys your production-to-yield ratio.

A strict 3-stage geometric hierarchy is the only way to sustain continuous mass flow on high-silica pebbles.

Process Stage	Recommended Model	Capacity (tons per hour)	Kinetic Function
Primary Extraction	C6X110 Jaw	160-550	Gross Compressive Reduction
Secondary Kinetic Buffer	HPT300 Cone	110-440	Lamination Crushing (Size Correction)
Tertiary Shaping / Sand	VSI6X1040	264-515	Rock-on-Rock Friction

Analyze the 264-515 tph capacity of the VSI6X1040. This massive throughput is completely dependent on the HPT300 delivering a steady, uninterrupted flow of material strictly under 40mm. The entire plant’s output is governed by this single dimensional hand-off.

River Pebble 3-Stage Circuit: Mass Balance Thresholds

System Mass Flow: Sustained 280-310 tph across all three nodes
Jaw Discharge CSS: Calibrated strictly to 120-150mm
Cone Discharge Profile: Compressed to 0-30mm (Buffer stage)
VSI Feed Restriction: Absolute maximum 40mm rock acceptance
Screening Integration: S5X closed-circuit looping for +40mm rejects

LH-RIVER_PEBBLE_JAW_AND_VSI_CRUSHER_PRODUCTION_LINE-July/2026-Ref-#81924

Rock-on-Rock Kinetic Collision

River pebbles compressed by a primary jaw inherently yield up to 30% flaky and elongated slabs. A cone crusher improves the size but does little for the geometric shape. If you attempt to sell the raw output from the secondary cone, it will fail commercial concrete shear-stress tests instantly.

Field Note: In an Indonesian extraction site, an operator bypassed the VSI stage to save electricity. The resulting concrete mix required 15% more cement paste just to fill the voids created by the flaky, unshaped pebbles, destroying the project’s profitability.

The VSI6X must be positioned at the end of the circuit to execute rock-on-rock kinetic collisions. As the 30mm pebbles enter the high-speed rotor, they are accelerated outward and smashed into a dense, stationary bed of aggregate lining the crushing chamber. This internal friction physically shears off the sharp, flaky edges. The VSI does not just crush; it cures the grain architecture, producing premium cubical manufactured sand.

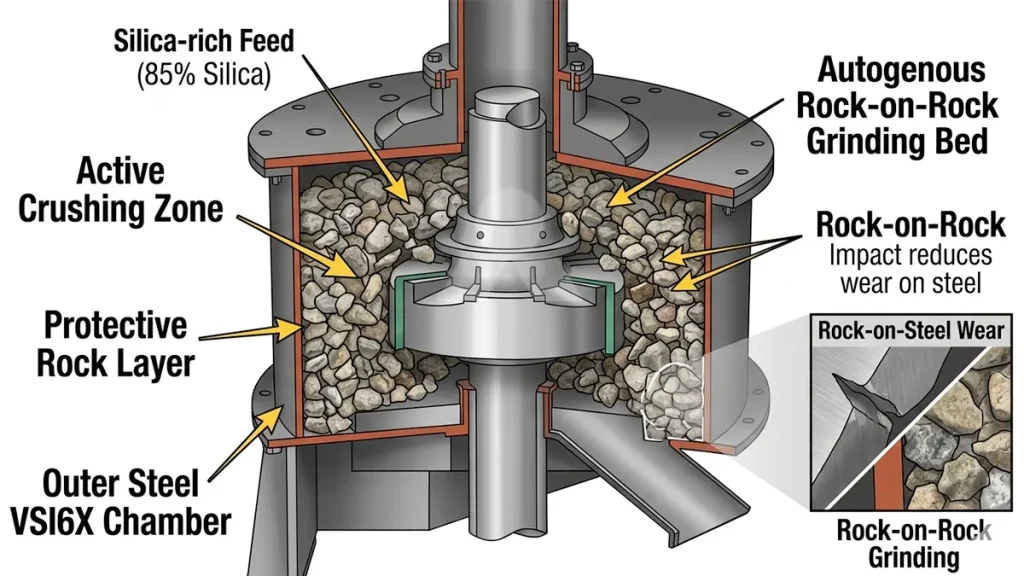

Internal view of the VSI6X crushing chamber demonstrating the autogenous rock-on-rock grinding bed that protects the outer steel from 85% silica abrasion. — Figure 1: Forensic analysis of the VSI6X rock-on-rock cavity, illustrating the kinetic friction zone required to shear flaky edges without destroying metal wear parts.

Gradation Gap & Kinetic Choke Verdict

Rotor Paralysis: Why do 2-stage pebble plants fail instantly?

Feeding 150mm jaw discharge directly into a 40mm VSI aperture creates a physical impossibility. The oversized boulders bridge across the distributor plate, jamming the high-RPM rotor. The dual motors will spike their amperage draw and violently stall, resulting in severe downtime and a collapsed production-to-yield ratio.

Silica Abrasion: Why is a cone required instead of a secondary impactor?

River pebbles consist of 85% silica. A secondary impact crusher relies on steel blow bars striking the rock, which will vaporize the high-chrome alloy in 48 hours. An HPT cone utilizes continuous lamination crushing, forcing the abrasive pebbles to grind against each other, drastically reducing the wear-part hemorrhage.

Flakiness Index: Why is the VSI mandatory for commercial aggregate?

Jaw and cone crushers rely on compressive force, which naturally shears rounded pebbles into sharp, flat slivers. The VSI6X utilizes kinetic rock-on-rock collision to physically chip away these sharp edges. Without this tertiary shaping stage, the aggregate remains highly flaky and structurally non-compliant.

Zero-Waste Flow: What is the risk of an open-circuit pebble plant?

An open-circuit plant guarantees oversized waste. The flowchart must integrate S5X vibrating screens in a strict closed-circuit loop. Any +40mm oversized pebbles that exit the secondary cone must be continuously returned via a secondary belt, ensuring absolute zero-waste extraction and strict feed compliance for the VSI.

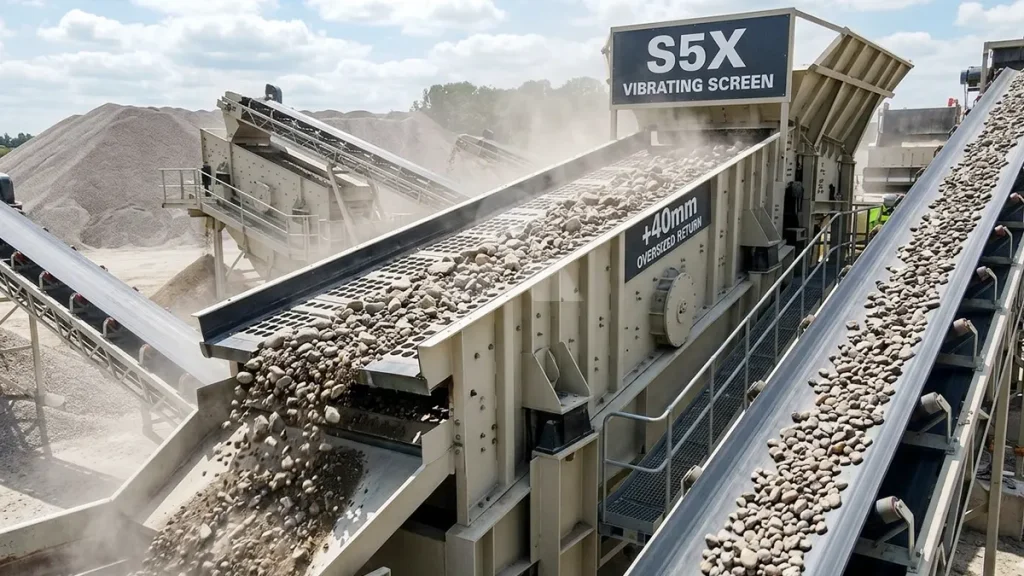

A massive S5X vibrating screen actively rejecting +40mm oversized pebbles and routing them onto a return conveyor in a closed-circuit system. — Figure 2: The S5X screening matrix executing absolute mass balance control by intercepting and returning +40mm pebbles back to the secondary cone for re-crushing.

Enforcing Geometric Discipline on Pebble Circuits

A mass balance deficit is mathematically unforgiving. You cannot bypass the intermediate reduction stage to save upfront equipment costs. Attempting a 2-stage jaw-to-VSI circuit on river pebbles guarantees immediate rotor paralysis and catastrophic motor stalls. The architecture must mandate an HPT secondary cone to bridge the gradation gap, preserving the VSI6X strictly for high-RPM kinetic shaping. If you execute an unbuffered, open-circuit flowchart next month, the resulting mechanical failures and rejected flaky aggregate will permanently paralyze your circuit amortization cycle.
